LDO
PR9302 Series
LDO

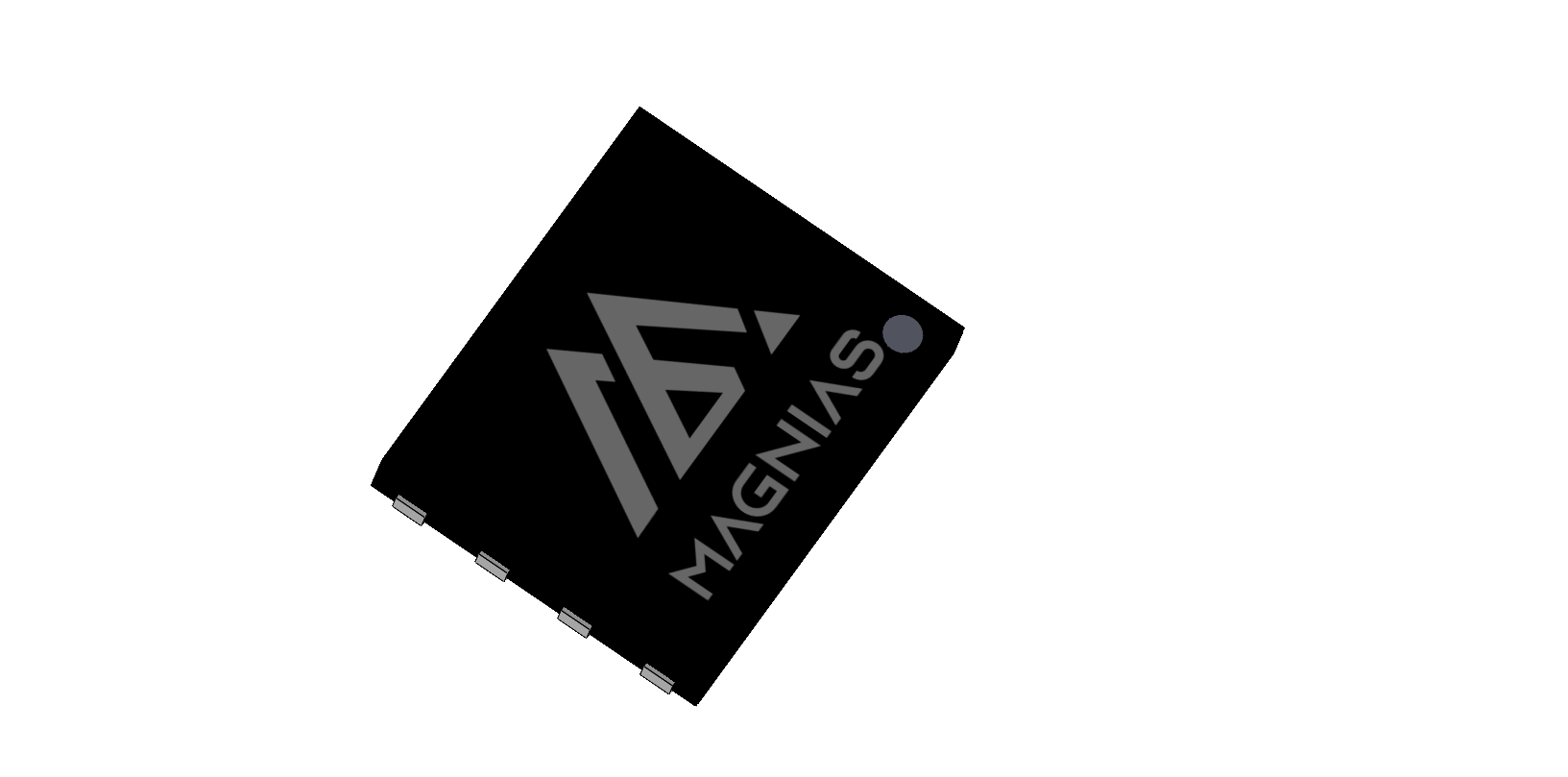

LDO in a DFN3030-10L SOP-8 package.
DFN3030-10L
SOP-8 RoHS Halogen Free AVAILABLE
Package — DFN3030-10L
SOP-8
Applications
- VIN Range up to 6V Notebook, Netbook, Graphic Cards
- VOUT is Adjustable (0.8V Min) Low Voltage Logic Supplies
- Excellent Line Regulation (0.01%/V typ.) Chipset Supplies
- Excellent Load Regulation(0.1%/A typ.) Server System
- Dropout Voltage Typically 250 mV at IOUT = 3A SMPS Post Regulators
- Internal Thermal Overload Protection
- VOUT Under Voltage Protection
- Ceramic Capacitor Stable
Key specifications
Product Name
PR9302 Series
Package
DFN3030-10L
SOP-8
VIN MIN
(V)
1
VIN MAX
(V)
6
IOUT
(A)
3
Fixed/Adjustable
Adjustable
VOUT
(V)
0.8 ~ 5.5
IQ
(µA)
900
Vdropout
(V)
0.25
PSRR @ 1kHz
(dB)
60
VOUT
Accuracy
(%)
2
Features
Current Limiting
Thermal Protection
Under Voltage Protection
