LDO
PR9050-ADS5
LDO

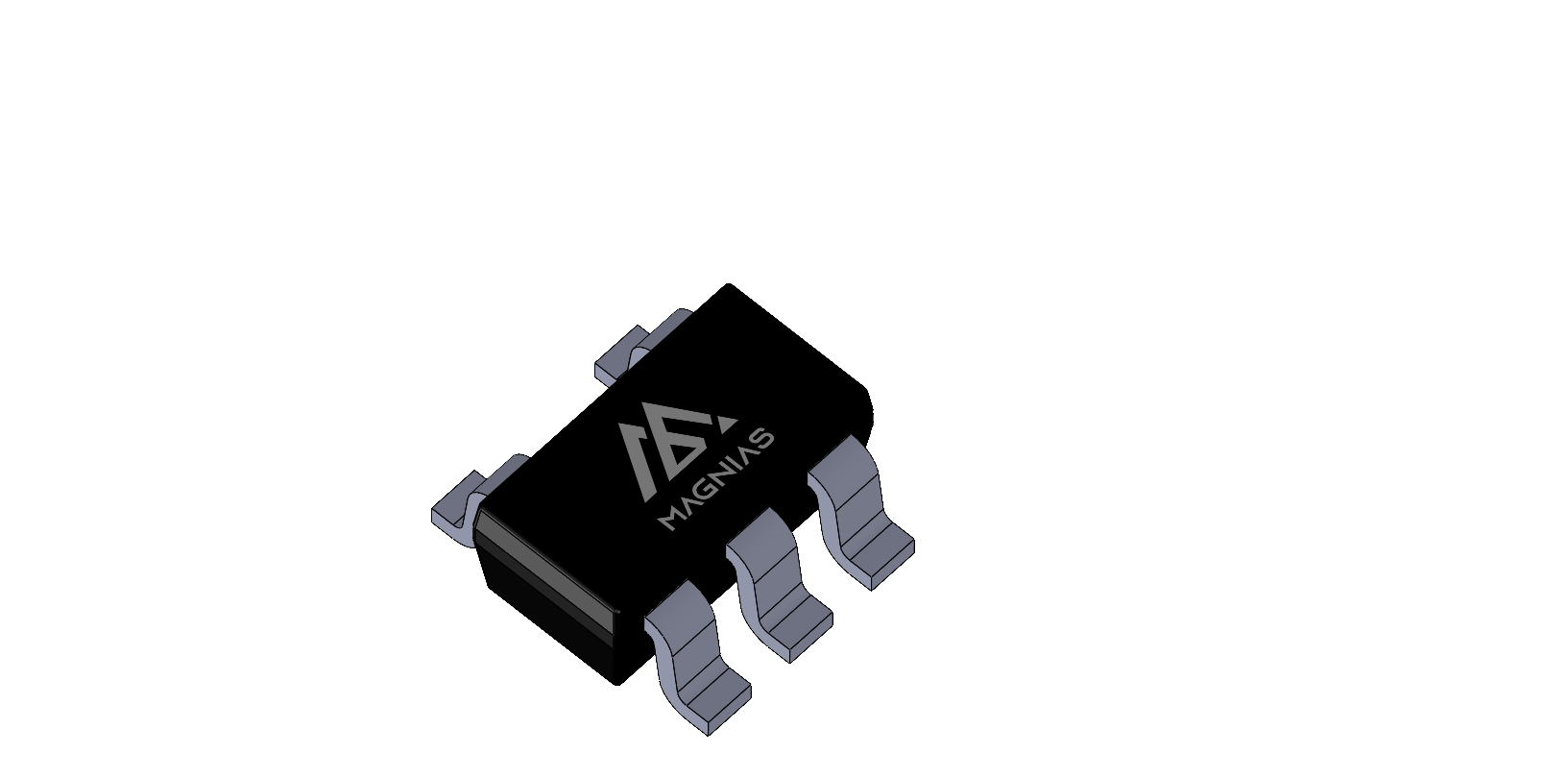

LDO in a SOT23-5L package.
SOT23-5L RoHS Halogen Free AVAILABLE
Package — SOT23-5L
Features
- VIN Range up to 6V
- Output Voltage Tolerances of ±2% Over the Temperature Range
- Output Current of 500mA
- Ultra-Low Quiescent Current (IQ = 1.5µA)
- Dropout Voltage Typically 600mV at IOUT = 500mA
- Internal Thermal Overload Protection
- Internal Short-Circuit Current Limit
- Ceramic Capacitor Stable
Applications
- Portable, Battery Powered Equipment
- Ultra-Low Power Microcontroller Notebook computers
- DDR5 CU-DIMM RGB LED Driver power
Key specifications
Product Name
PR9050-ADS5
Package
SOT23-5L
VIN MIN
(V)
2.5
VIN MAX
(V)
5.5
IOUT
(A)
0.5
Fixed/Adjustable
Adjustable
VOUT
(V)
0.8 ~ 3.3
IQ
(µA)
1.5
Vdropout
(V)
0.13
PSRR @ 1kHz
(dB)
60
VOUT
Accuracy
(%)
2
Features
Thermal Overload Protection
Short-Circuit Current Limit
