LDO
PR9030 Series
LDO

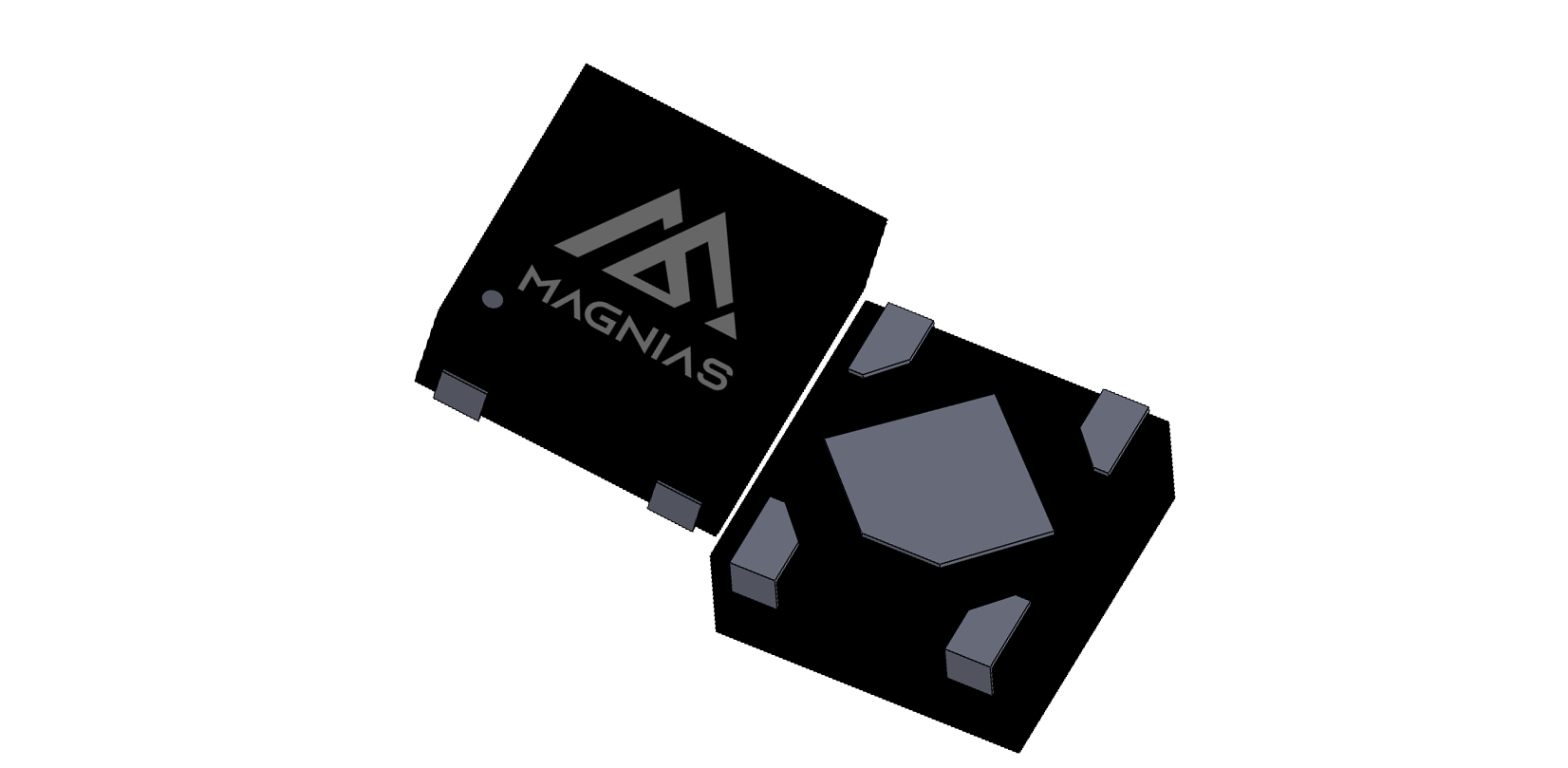

LDO in a DFN1010-4L SOT23-5L SOT353 SOT23-3L package.
DFN1010-4L
SOT23-5L
SOT353
SOT23-3L RoHS Halogen Free AVAILABLE
Package — DFN1010-4L
SOT23-5L
SOT353
SOT23-3L
Features
- VIN Range up to 6V
- Output Voltage Tolerances of ±2% Over the Temperature Range
- Output Current of 300mA
- Ultra-Low Quiescent Current (IQ = 500nA)
- Dropout Voltage Typically 500mV at IOUT = 300mA
- Internal Thermal Overload Protection
- Internal Short-Circuit Current Limit
- Ceramic Capacitor Stable
Applications
- Portable Electronic Devices
- Smoke Detectors IP Cameras
- Wireless LAN Devices
- Battery-Powered Equipment
- Smartphones and Tablets Digital Cameras and Audio Devices
Key specifications
Product Name
PR9030 Series
Package
DFN1010-4L
SOT23-5L
SOT353
SOT23-3L
VIN MIN
(V)
2.5
VIN MAX
(V)
5.5
IOUT
(A)
0.3
Fixed/Adjustable
Fixed
VOUT
(V)
1.2 ~ 3.3
IQ
(µA)
0.5
Vdropout
(V)
0.4
PSRR @ 1kHz
(dB)
60
VOUT
Accuracy
(%)
2
Features
Thermal Overload Protection
Short-Circuit Current Limit
