LDO 稳压器

PR9300 Series

LDO

PR9300 Series 为LDO，采用 SOP-8/TDF3X3-10L 封装。

SOP-8/TDF3X3-10L 符合 RoHS 无卤现货供应

下载规格书申请样品

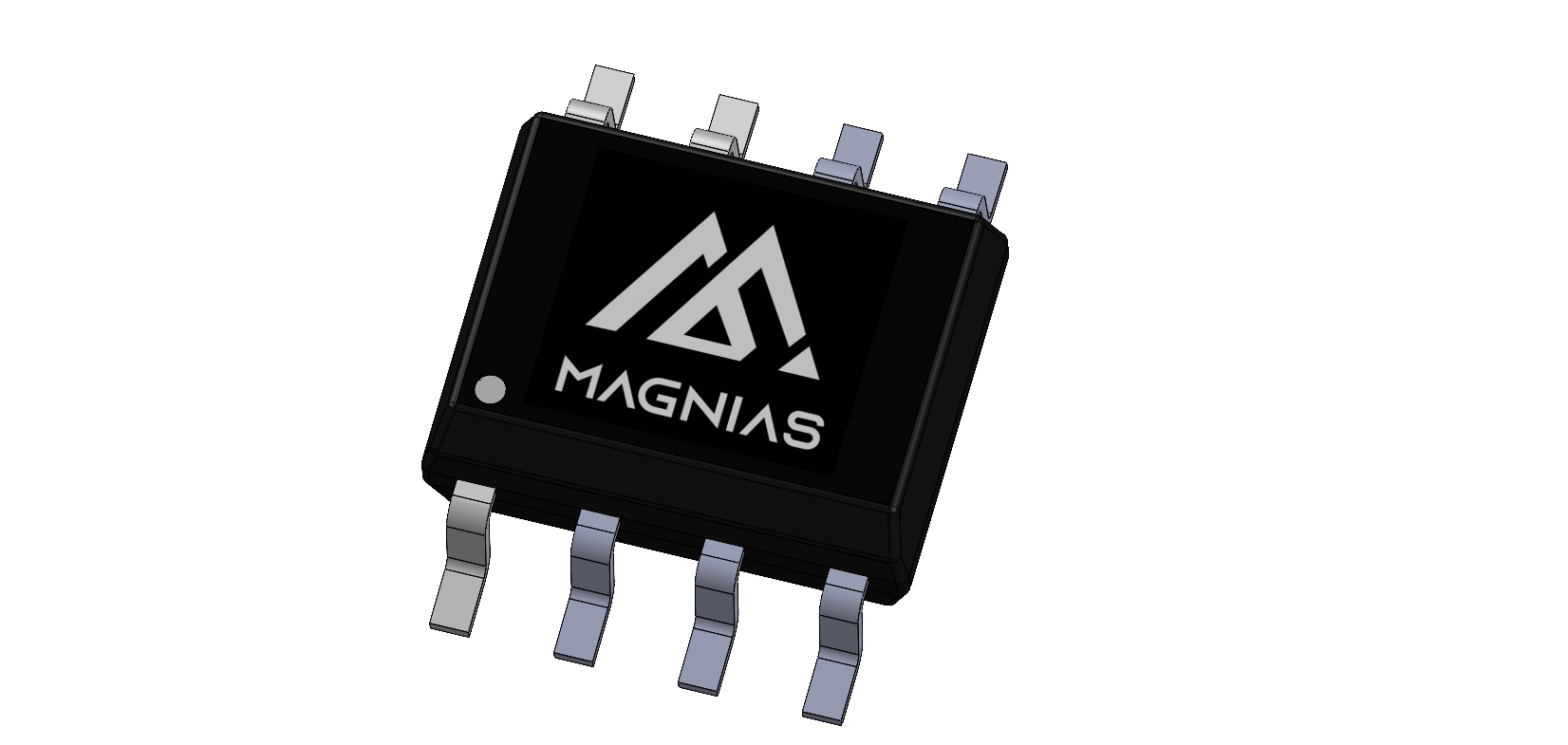

SOP-8/TDF3X3-10L 3D package render

封装 — SOP-8/TDF3X3-10L

产品特性

ower-On-Reset Monitoring on Both VIN and VPP pins: VUVLO, VIN =1V, VUVLO
230mV (Typ.) Dropout at 3A output current
VOUT Pull Low Resistance when Disable
VOUT Soft Start when Enable
Low Reverse Leakage (Output to Input)
Enable Pin
Over Current and Over Temperature rotection
Open-Drain Power Good (POK)
SOP-8(FD) and TDFN3x3-10 Package

应用领域

Battery-powered Device
便携式设备 Notebook Computers

关键规格

Product Name

PR9300 Series

Package

SOP-8/TDF3X3-10L

VIN MIN (V)

1

VIN MAX (V)

5.5

IOUT (A)

3

Fixed/Adjustable

Adjustable

VOUT (V)

Adj

IQ (µA)

10

Vdropout (V)

0.23

PSRR @ 1kHz (dB)

70

VOUT Accuracy (%)

1.5

Features

Soft Start, Over Current Protection, Over Temperature Protection, Open-Drain Power Good (POK)
