TVS
SMF90(C)A
TVS diode
TVS diode in a SMF(SOD123-FL) package. Designed to clamp transient overvoltages from lightning, inductive load switching, and other surge events.
SMF(SOD123-FL) RoHS Halogen Free AVAILABLE

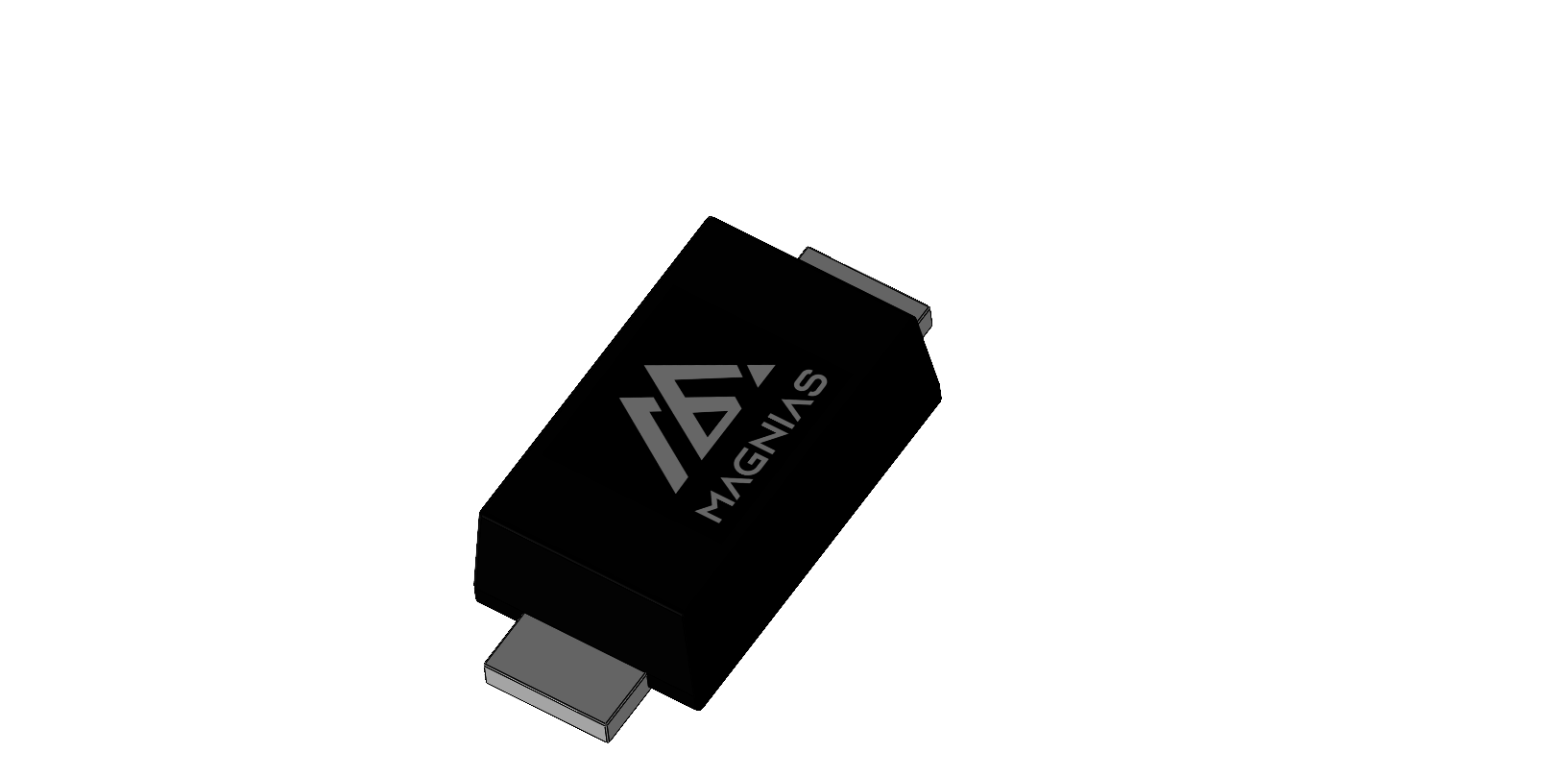

Package — SMF(SOD123-FL)
Features
- 10/1000 us waveform, repetitive rate (duty cycle):0.01%
Key specifications
Product Name
Uni(Bi)
SMF90(C)A
Package
SMF(SOD123-FL)
PPK @ 10/1000us
(W)
200
VRWM
(V)
90
IR @ VRWM
(µA)
1
VBR MIN
(V)
100
VBR MAX
(V)
111
IT
(mA)
1
VCMAX @IPP
（V)
146
IPP @ 10/1000us
(A)
1.4
