Schottky
SS540C
Schottky rectifier
Schottky rectifier in a SMC(DO-214AB) package. Provides low forward-voltage drop and fast switching for high-efficiency rectification and power-supply applications.
SMC(DO-214AB) RoHS Halogen Free AVAILABLE

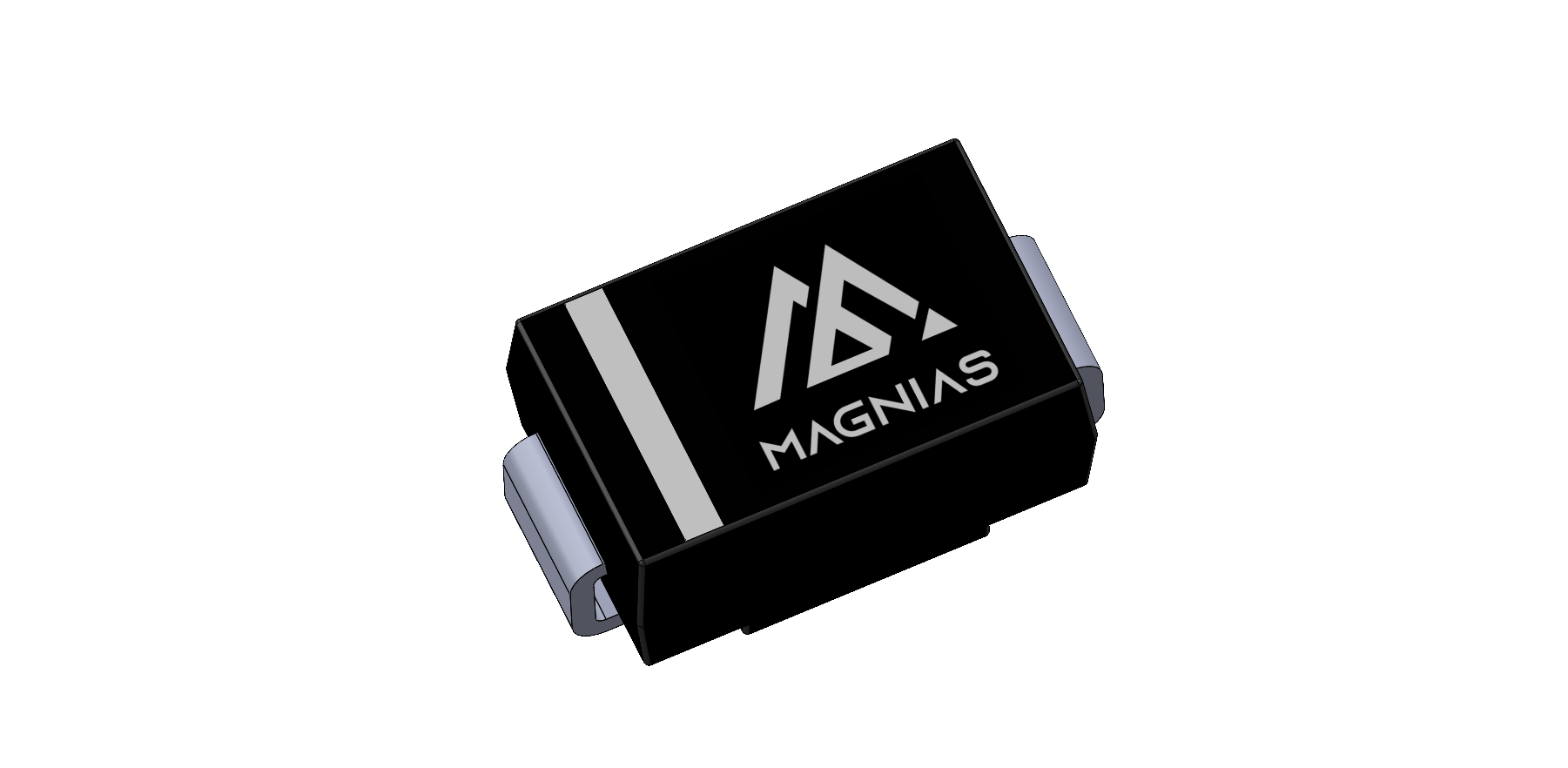

Package — SMC(DO-214AB)
Features
- Low profile package
- Ideal for automated placement
- Guard Ring for over voltage protection
- Low forward voltage drops
Applications
- Low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key specifications
Product Name
SS540C
Package
SMC(DO-214AB)
IF
(mA)
5000
IFSM
(A)
120
VRRM
(V)
40
VF@ IF= 1mA
(V)
-
VF@IF=MAX
(V)
0.55
IR
(mA)
0.1
Trr
(ns)
-
Cj
(pF)
400
VRMS
(V)
28
