Schottky
SS3100B
Schottky rectifier
Schottky rectifier in a SMB(DO-214AA) package. Provides low forward-voltage drop and fast switching for high-efficiency rectification and power-supply applications.
SMB(DO-214AA) RoHS Halogen Free AVAILABLE

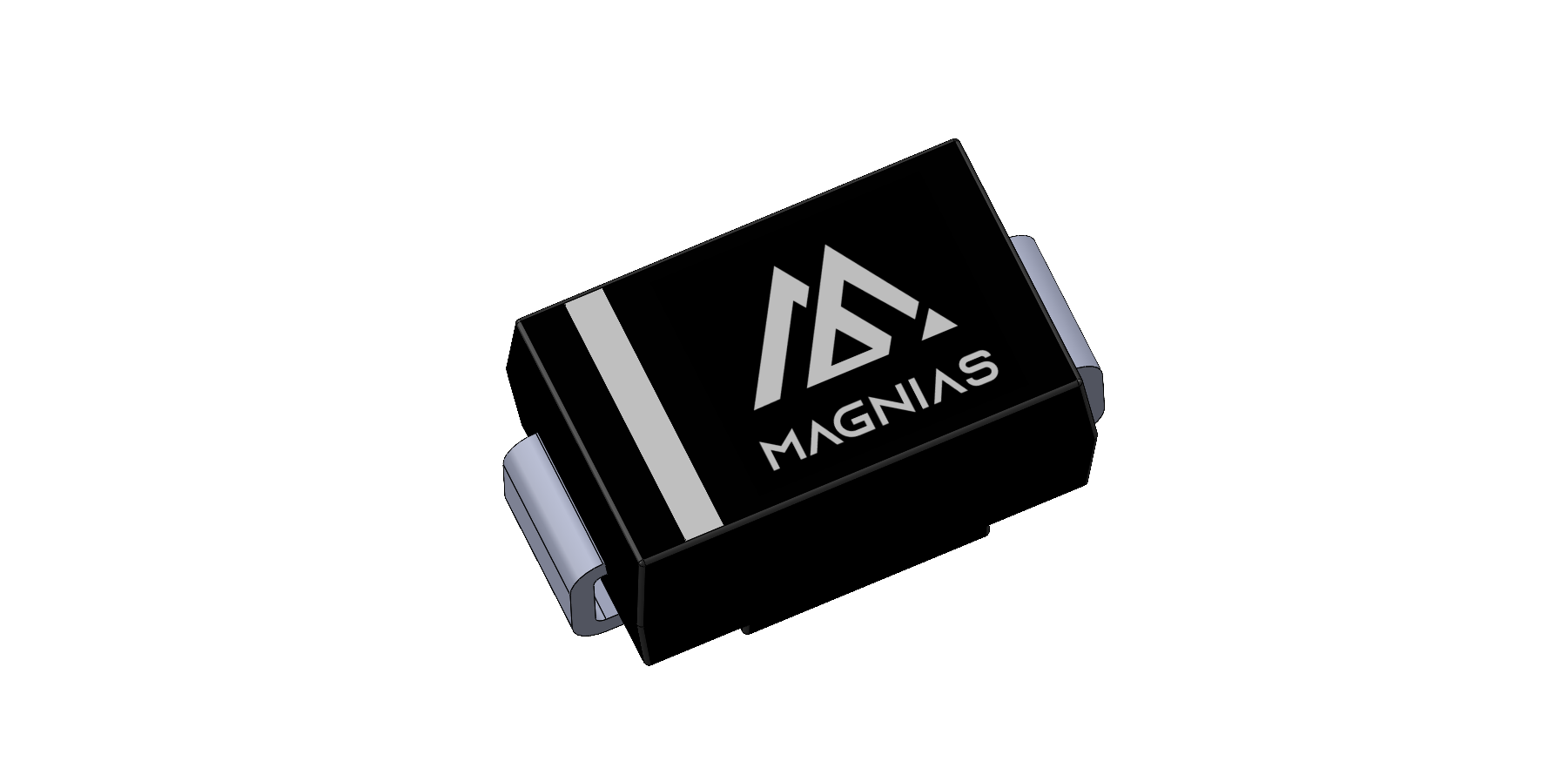

Package — SMB(DO-214AA)
Features
- Reverse current 0.1mA (max.)
- Low forward voltage 0.85V @IF = 3A
- eak forward surge current: 80A
- lastic package has underwriters laboratories flammability classification 94V-0
Applications
- Low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key specifications
Product Name
SS3100B
Package
SMB(DO-214AA)
IF
(mA)
3000
IFSM
(A)
80
VRRM
(V)
100
VF@ IF= 1mA
(V)
-
VF@IF=MAX
(V)
0.85
IR
(mA)
0.1
Trr
(ns)
-
Cj
(pF)
90
VRMS
(V)
70
