Schottky
SS3100A
Schottky rectifier
Schottky rectifier in a SMA(DO-214AC) package. Provides low forward-voltage drop and fast switching for high-efficiency rectification and power-supply applications.
SMA(DO-214AC) RoHS Halogen Free AVAILABLE

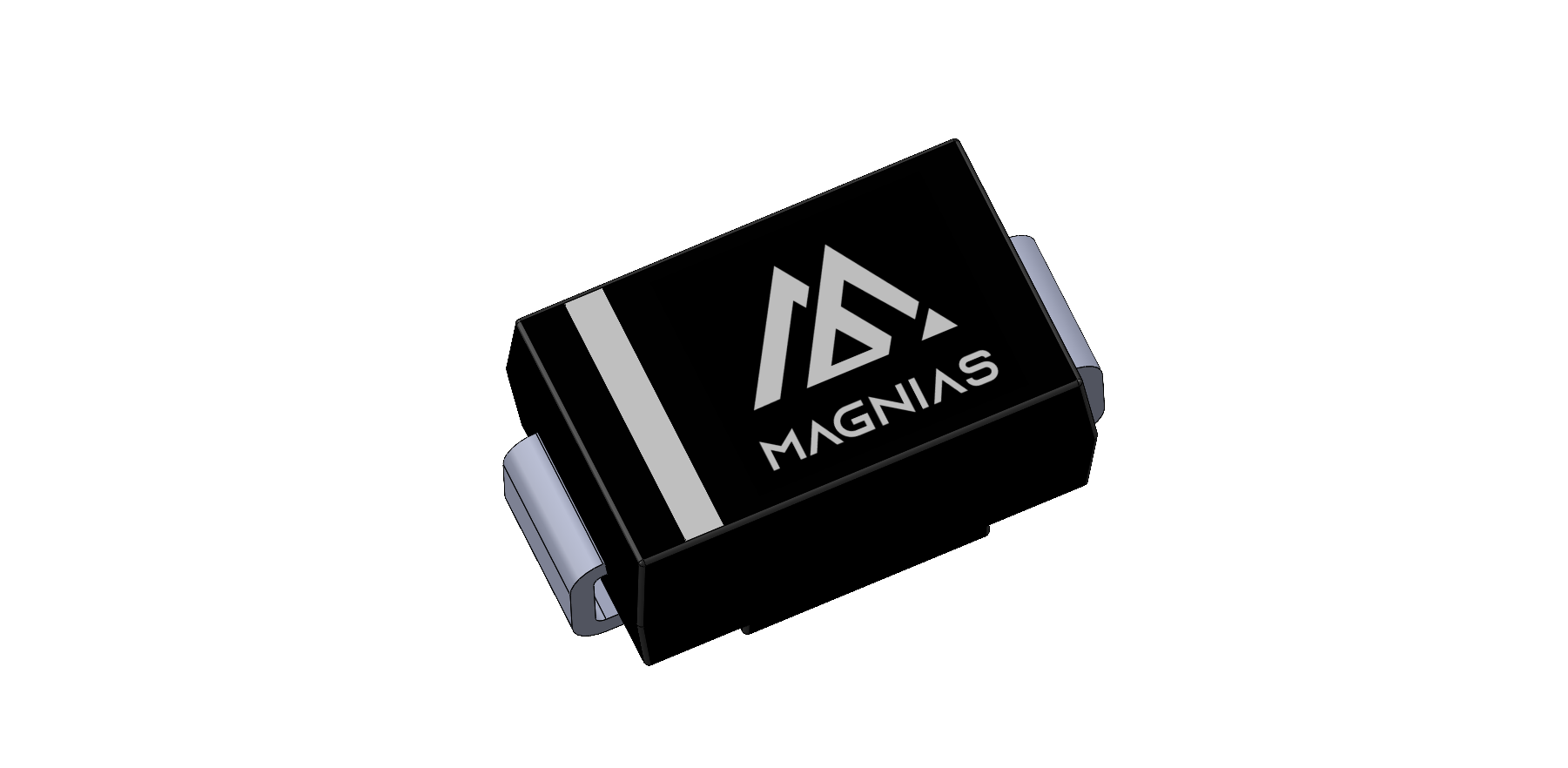

Package — SMA(DO-214AC)
Features
- 3A, 100V Schottky Diode
- Low power loss, high efficiency
- For surface mounted applications
- Low forward voltage drop
- High surge capacity
- Meet UL flammability classification 94V-0
Applications
- Low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key specifications
Product Name
SS3100A
Package
SMA(DO-214AC)
IF
(mA)
3000
IFSM
(A)
100
VRRM
(V)
100
VF@ IF= 1mA
(V)
-
VF@IF=MAX
(V)
0.85
IR
(mA)
1
Trr
(ns)
-
Cj
(pF)
250
VRMS
(V)
70
