Schottky
SS10200C
Schottky rectifier

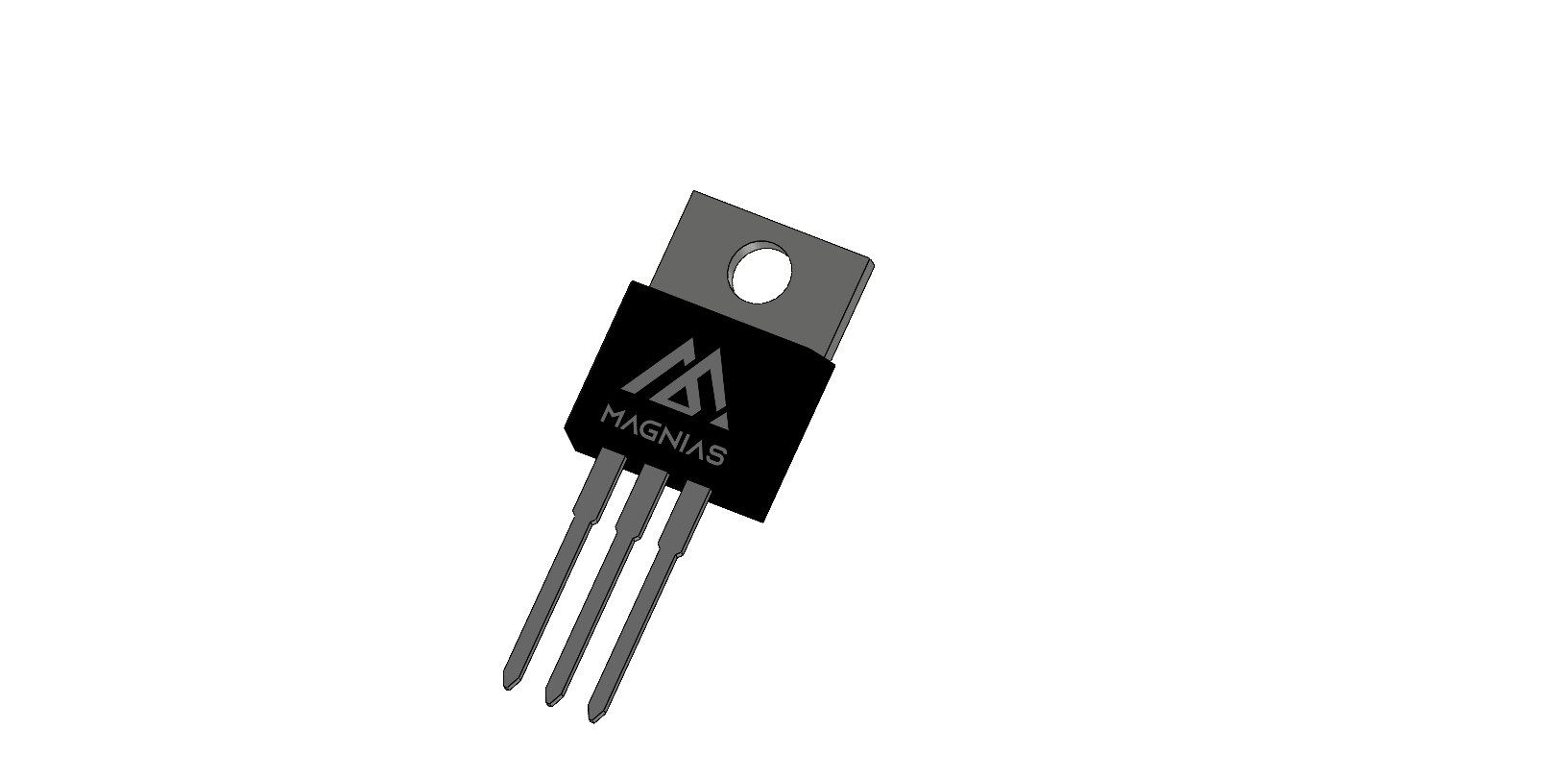

Schottky rectifier in a TO-220C package. Provides low forward-voltage drop and fast switching for high-efficiency rectification and power-supply applications.
TO-220C RoHS Halogen Free AVAILABLE
Package — TO-220C
Features
- lastic package has underwriters laboratories flammability classification 94V-0
- Lead free in compliance with EU RoHS 2011/65/EU directive
Applications
- Polarity Protection Diode Re-Circulating Diode
- Switching Diode
Key specifications
Product Name
SS10200C
Package
TO-220C
IF
(mA)
10000
IFSM
(A)
100
VRRM
(V)
200
VF@ IF= 1mA
(V)
-
VF@IF=MAX
(V)
0.95
IR
(mA)
0.1
Trr
(ns)
-
Cj
(pF)
112
VRMS
(V)
140
