Schottky
BAT54CDW
Schottky rectifier
Schottky rectifier in a SOT363 package. Provides low forward-voltage drop and fast switching for high-efficiency rectification and power-supply applications.

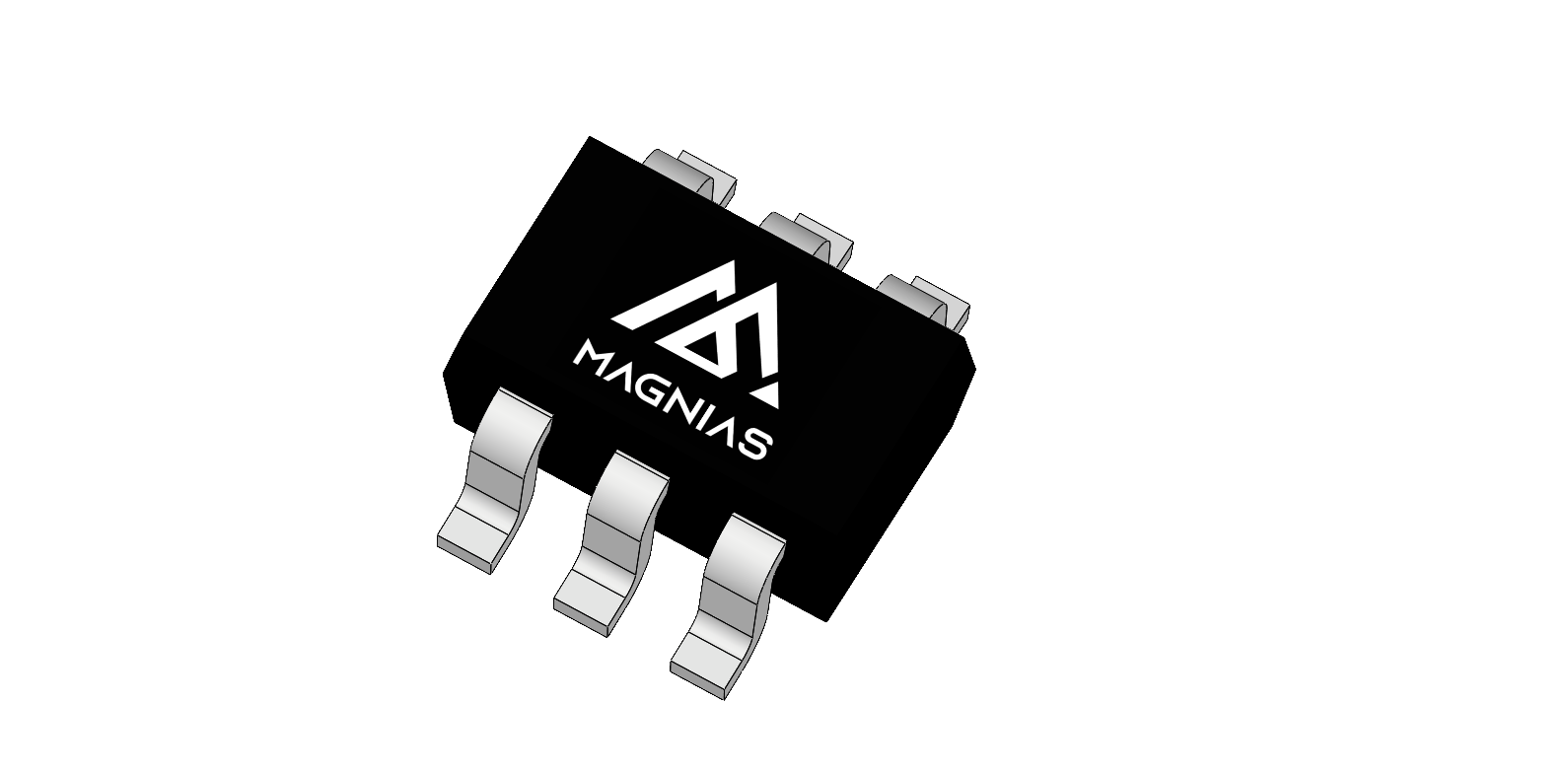

SOT363 RoHS Halogen Free AVAILABLE
Package — SOT363
Features
- rotection
Applications
- Low Forward Voltage Schottky Rectifier
- N Junction Guard Ring for Transient and ESD
- RoHS compliant / Green EMC
- Matte Tin (Sn) Lead finish
Key specifications
Product Name
BAT54CDW
Package
SOT363
IF
(mA)
100
IFSM
(A)
0.6
VRRM
(V)
30
VF@ IF= 1mA
(V)
0.32
VF@IF=MAX
(V)
1
IR
(mA)
0.002
Trr
(ns)
-
Cj
(pF)
-
VRMS
(V)
-
