MOSFET
2N7002KT7
MOSFET

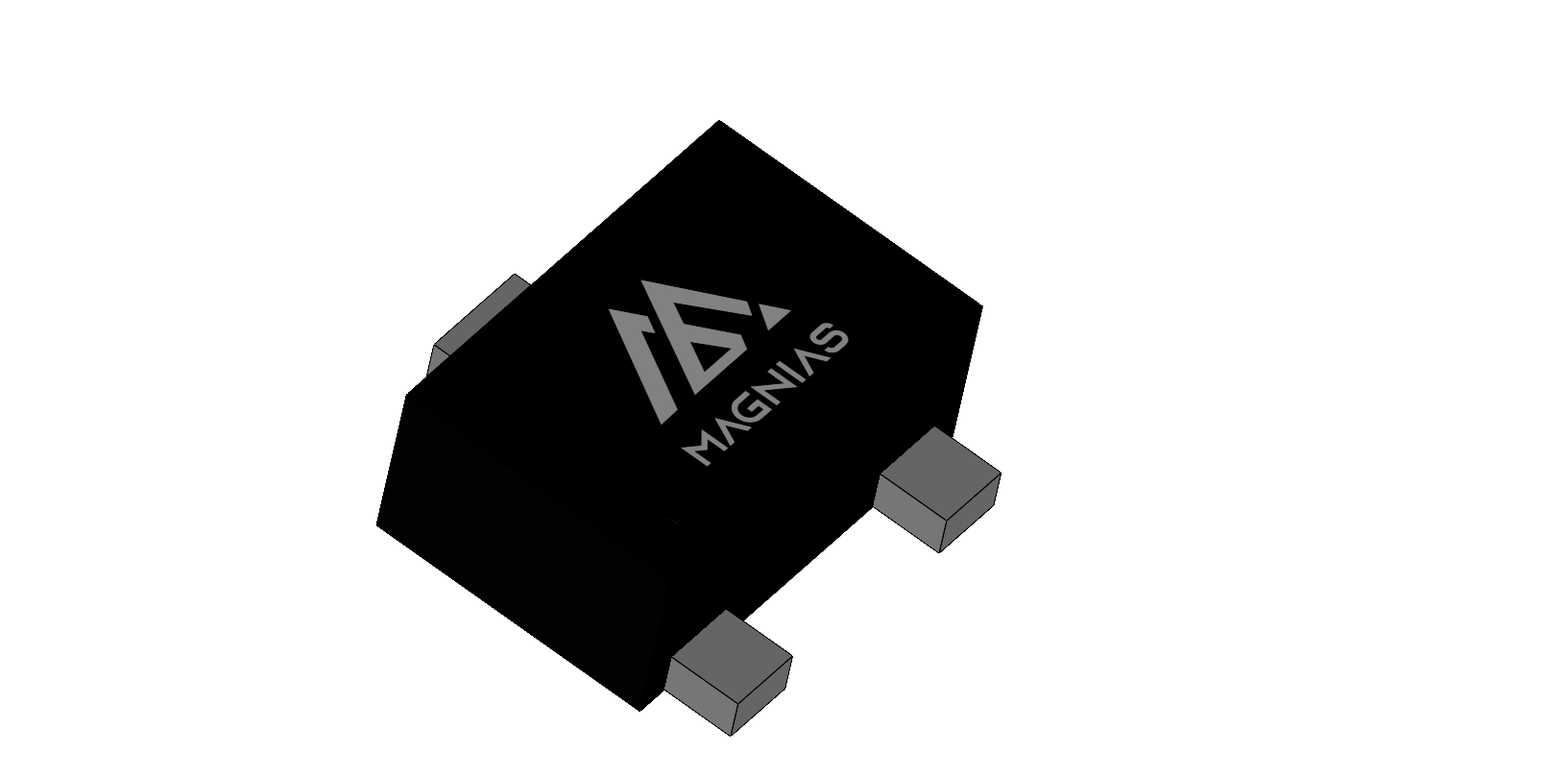

MOSFET in a SOT723 package.
SOT723 RoHS Halogen Free AEC-Q101 Qualified AVAILABLE
Package — SOT723
Features
- 60V, 0.3A
- ESD Protected: 2KV
- AEC-Q101 Qualified
Applications
- Battery Operated Systems
- Direct logic-level Interface: TTL/CMOS
- Solid-State Relays
Key specifications
Product Name
2N7002KT7
Package
SOT723
Category
N
VDS
(V)
60
ID
(A)
0.3
RDS(ON)@VG=10V
Typ. (mΩ)
1690
RDS(ON)@VG=10V
Max. (mΩ)
2200
RDS(ON)@VG=4.5V
Typ. (mΩ)
2050
RDS(ON)@VG=4.5V
Max. (mΩ)
2870
VGS
Max. (±V)
±20
VGS(TH)
Min. (V)
1
VGS(TH)
Typ. (V)
1.6
VGS(TH)
Max. (V)
2.5
COSS
Typ. (pF)
11
CISS
Typ. (pF)
28
Qg@VG=10V
Typ. (nC)
-
Qg@VG=4.5V
Typ. (nC)
1.7
with_ESD
V
