PZ0304Y-F9
ESD protection array
ESD protection array in a DFN3810-9L package. Designed to protect 8 signal lines from damage caused by electrostatic discharge (ESD) strikes and other transients.
DFN3810-9L RoHS Halogen Free AVAILABLE

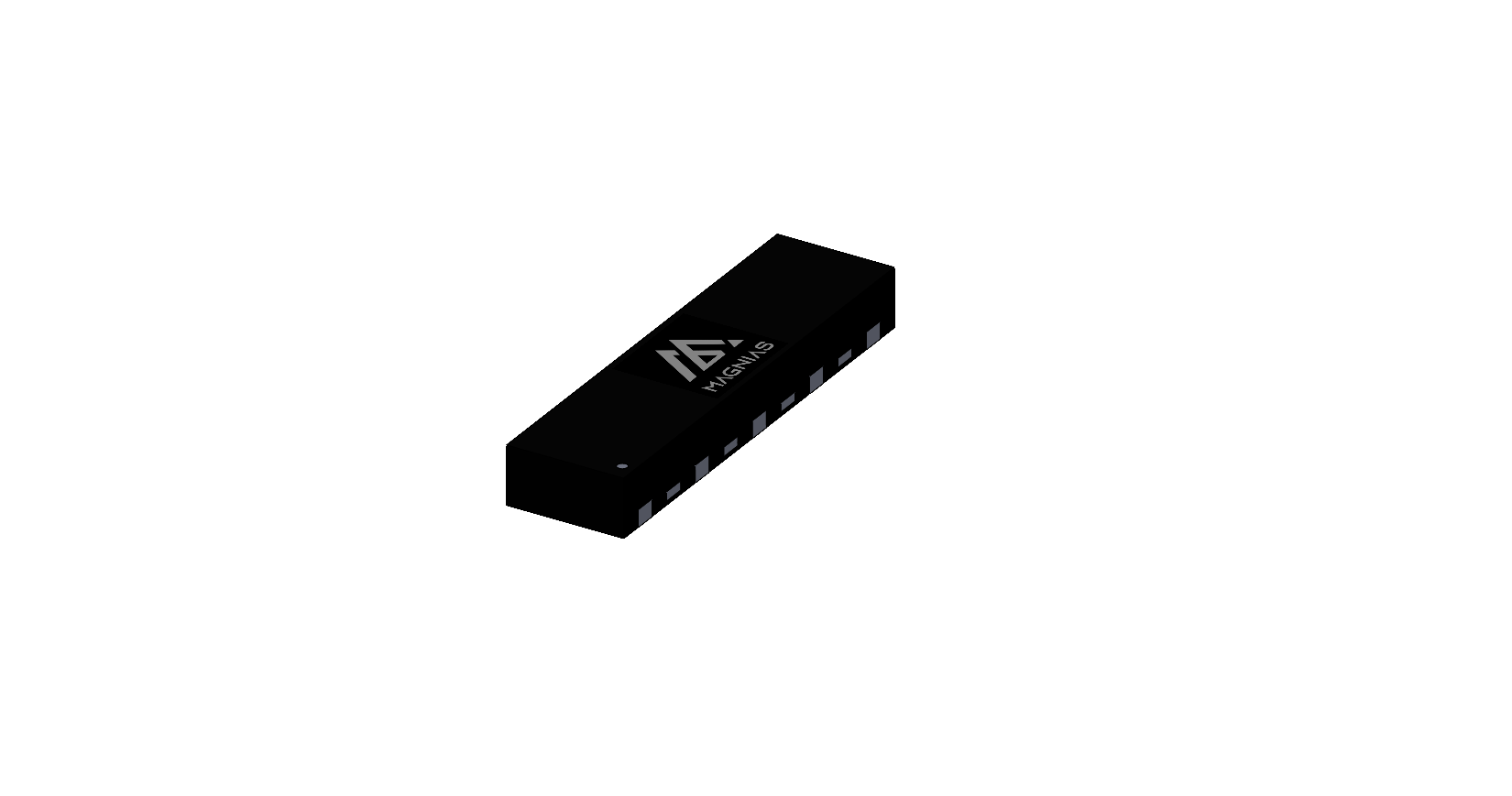

Package — DFN3810-9L
Features
- Ultra-Low Capacitance: 0.4pF
- Reverse Working Voltage: 3.3V
- IEC 61000-4-2 (Air): ±12kV
- IEC 61000-4-2 (Contact): ±12kV
- IEC 61000-4-5 (Surge): 5.5A (8/20us)
- Integrated 8 High Speed Data Lines
- PCB Single Connect and Flow Through Design
- ESD protection for super-speed differential signal
- (above 10Gb/s)
Applications
- V-by-One HS
- LVDS
- USB3.1/3.0 Data Line Protection
- USB3.1/3.0 Type-C
- HDMI 1.3, 1.4 and 2.0
- eDP
Key specifications
Product Name
PZ0304Y-F9
Package
DFN3810-9L
VRWM MAX.
(V)
3.3
VBR MIN.
(V)
3.6
CJ TYP.
(pF)
0.4
CJ MAX.
(pF)
0.6
Channel
8
ESD C
(kV)
±12
ESD A
(kV)
±12
IPP 8/20
(A)
5.5
PPP
(W)
30
VCIPP@1A
(V)
1.5
VCIPP@MAX
(V)
5
VCTLP@1A
(V)
2.8
VCTLP@16A
(V)
7
