PZ0302A-F7
ESD protection array
ESD protection array in a DFN1610-6L package. Designed to protect 2 signal lines from damage caused by electrostatic discharge (ESD) strikes and other transients.
DFN1610-6L RoHS Halogen Free AVAILABLE

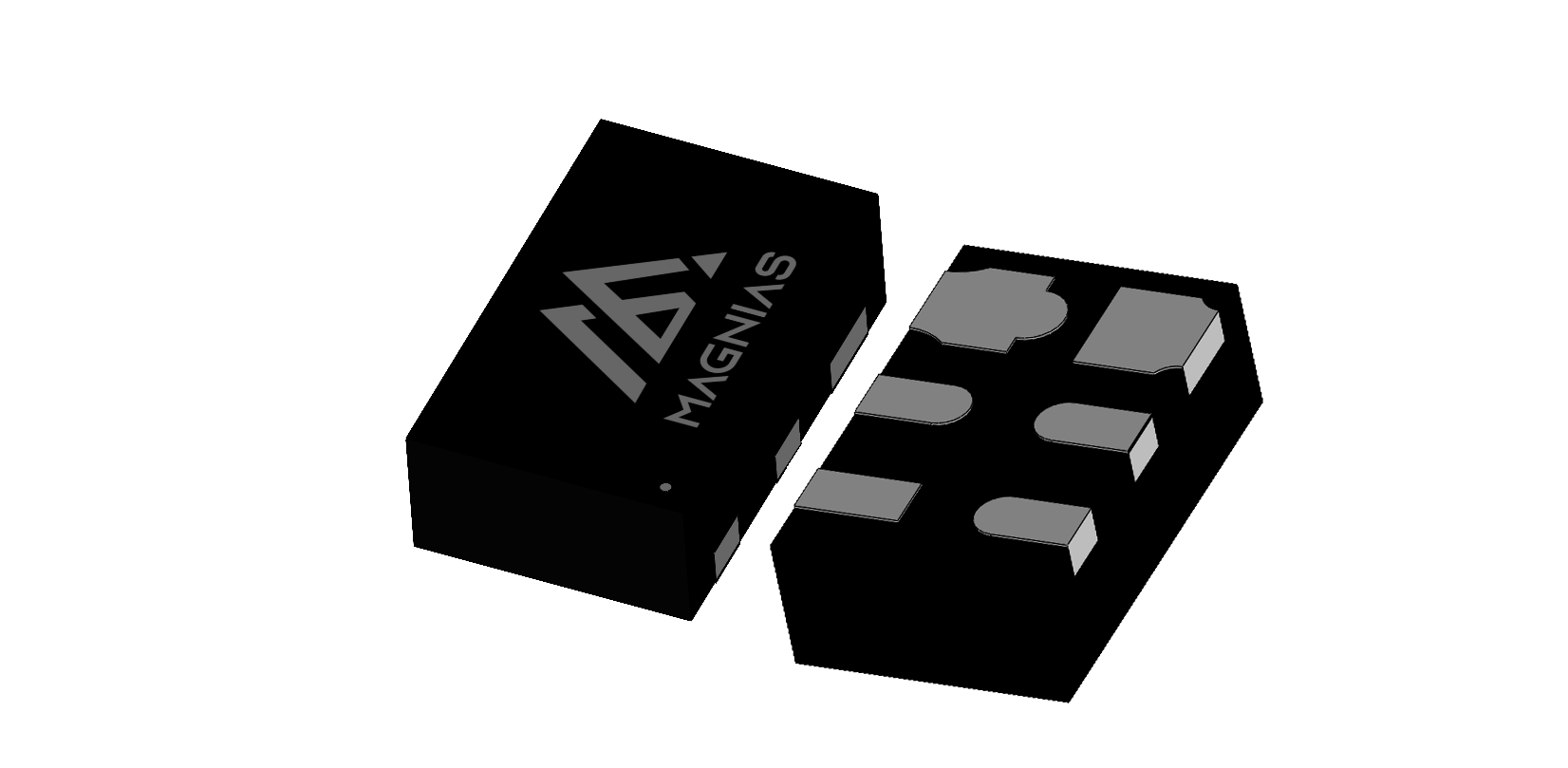

Package — DFN1610-6L
Features
- Low capacitance: 0.18pF (typ.)
- Reverse working voltage: 3.3V
- IEC 61000-4-2 (Air): ±21kV
- IEC 61000-4-2 (Contact): ±18kV
- IEC 61000-4-5 (Surge): 6.5A (8/20us)
Applications
- 1G/2.5G/5G/10G Ethernet
- Integrated Magnetics RJ 45 Connectors
- Central Equipment
- IP Camera
Key specifications
Product Name
PZ0302A-F7
Package
DFN1610-6L
VRWM MAX.
(V)
3.3
VBR MIN.
(V)
5.5
CJ TYP.
(pF)
0.18
CJ MAX.
(pF)
0.28
Channel
2
ESD C
(kV)
±18
ESD A
(kV)
±21
IPP 8/20
(A)
6.5
PPP
(W)
40
VCIPP@1A
(V)
-
VCIPP@MAX
(V)
4.65
VCTLP@1A
(V)
3
VCTLP@16A
(V)
9.6
