ESD
PZ0291A-F8
ESD protection array
ESD protection array in a DFN2010-8L package. Designed to protect 4 signal lines from damage caused by electrostatic discharge (ESD) strikes and other transients.
DFN2010-8L RoHS Halogen Free AEC-Q101 Qualified AVAILABLE

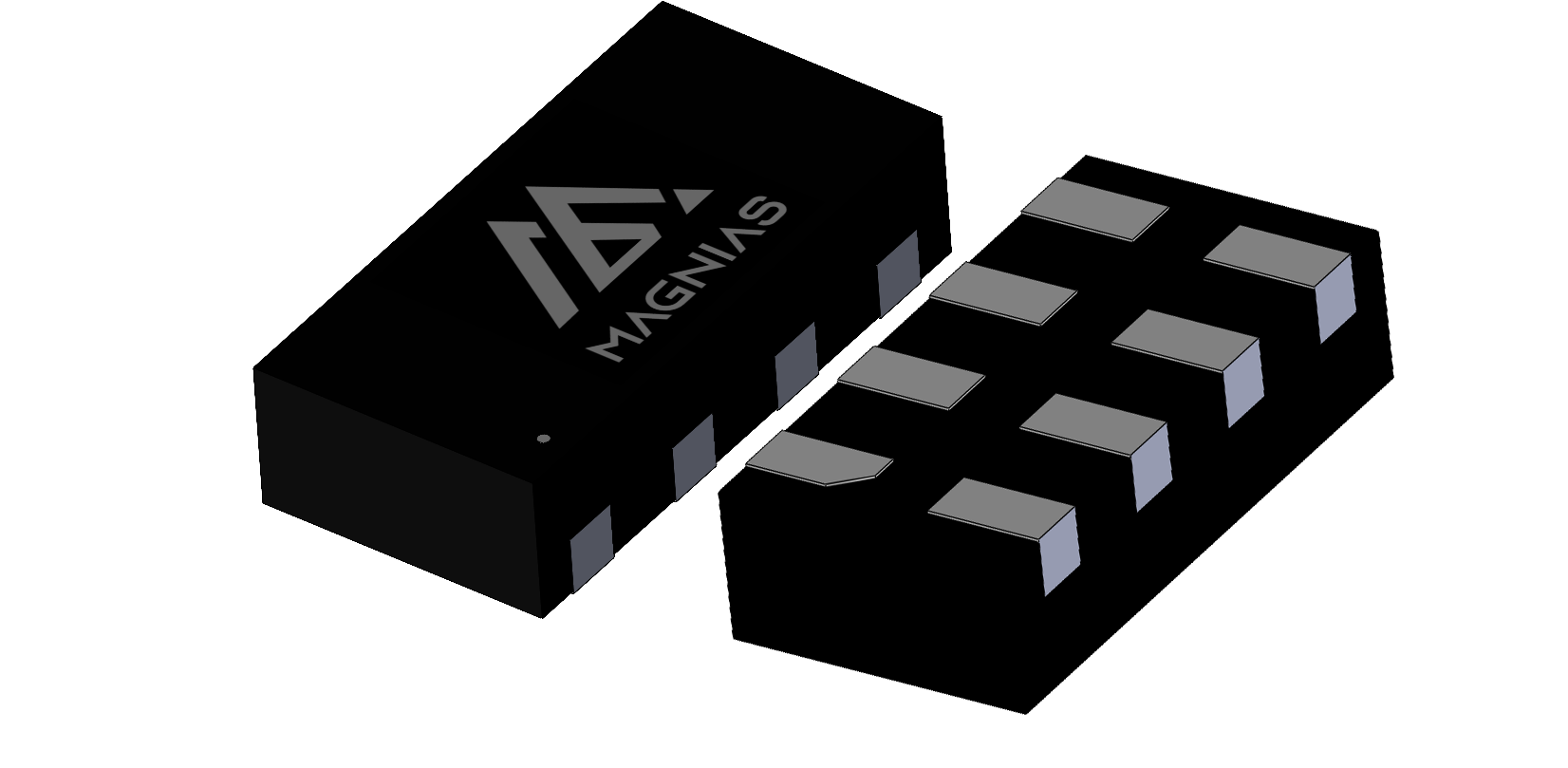

Package — DFN2010-8L
Features
- Low Capacitance: 1.5pF(max.)
- Reverse Working Voltage: 2.5V
- IEC 61000-4-2 (Air): ±30kV
- IEC 61000-4-2 (Contact): ±30kV
- IEC 61000-4-5 (Surge): 20A(8/20us)
- AEC-Q101 qualified
Applications
- 10/100/1000/2500 Ethernet
- WAN/LAN Equipment
- Switching Systems
- Computers
- Differential Inputs
- Instruments
Key specifications
Product Name
PZ0291A-F8
Package
DFN2010-8L
VRWM MAX.
(V)
2.5
VBR MIN.
(V)
2.7
CJ TYP.
(pF)
-
CJ MAX.
(pF)
1.5
Channel
4
ESD C
(kV)
±30
ESD A
(kV)
±30
IPP 8/20
(A)
20
PPP
(W)
130
VCIPP@1A
(V)
-
VCIPP@MAX
(V)
3
VCTLP@1A
(V)
2
VCTLP@16A
(V)
5.45
