ESD
PT2087J-F22
ESD protection diode
ESD protection diode in a DFN2020-3L package. Designed to protect one signal line from damage caused by electrostatic discharge (ESD) strikes and other transients.
DFN2020-3L RoHS Halogen Free AVAILABLE

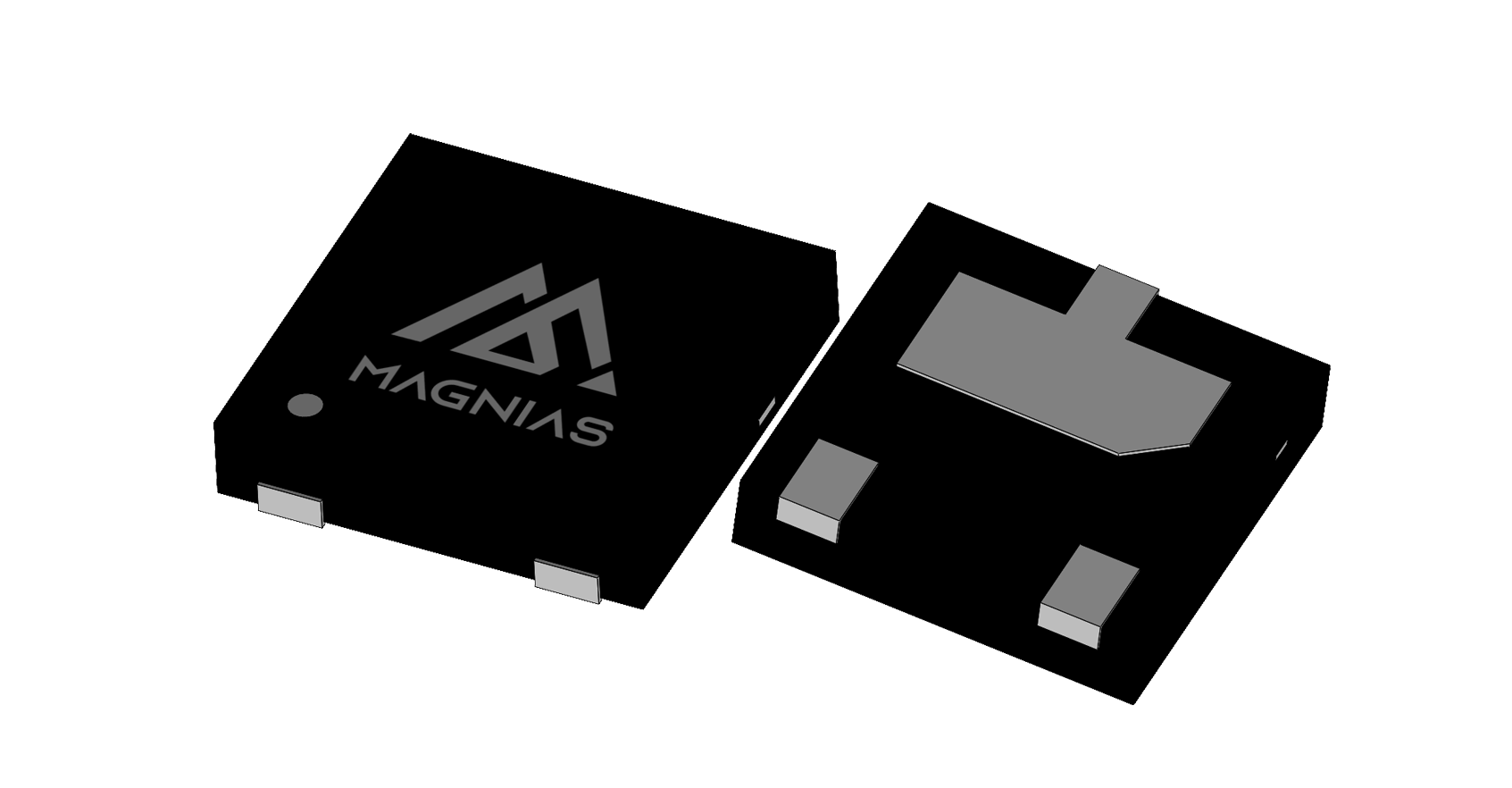

Package — DFN2020-3L
Features
- Junction capacitance: 700pF(typ.)
- Reverse working voltage: 20V
- IEC 61000-4-2 (Air): ±30kV
- IEC 61000-4-2 (Contact): ±30kV
- IEC 61000-4-5 (Surge): 110A (8/20us)
Applications
- Power line protection
- Battery contact protection
- Industrial equipment
- 5G dot terminal
- Networking equipment
Key specifications
Product Name
PT2087J-F22
Package
DFN2020-3L
VRWM MAX.
(V)
20
VBR MIN.
(V)
22.2
CJ TYP.
(pF)
650
CJ MAX.
(pF)
800
Channel
1
ESD C
(kV)
±30
ESD A
(kV)
±30
IPP 8/20
(A)
110
PPP
(W)
4500
VCIPP@1A
(V)
28
VCIPP@MAX
(V)
41
VCTLP@1A
(V)
-
VCTLP@16A
(V)
-
