PT0595L-C1
ESD protection diode

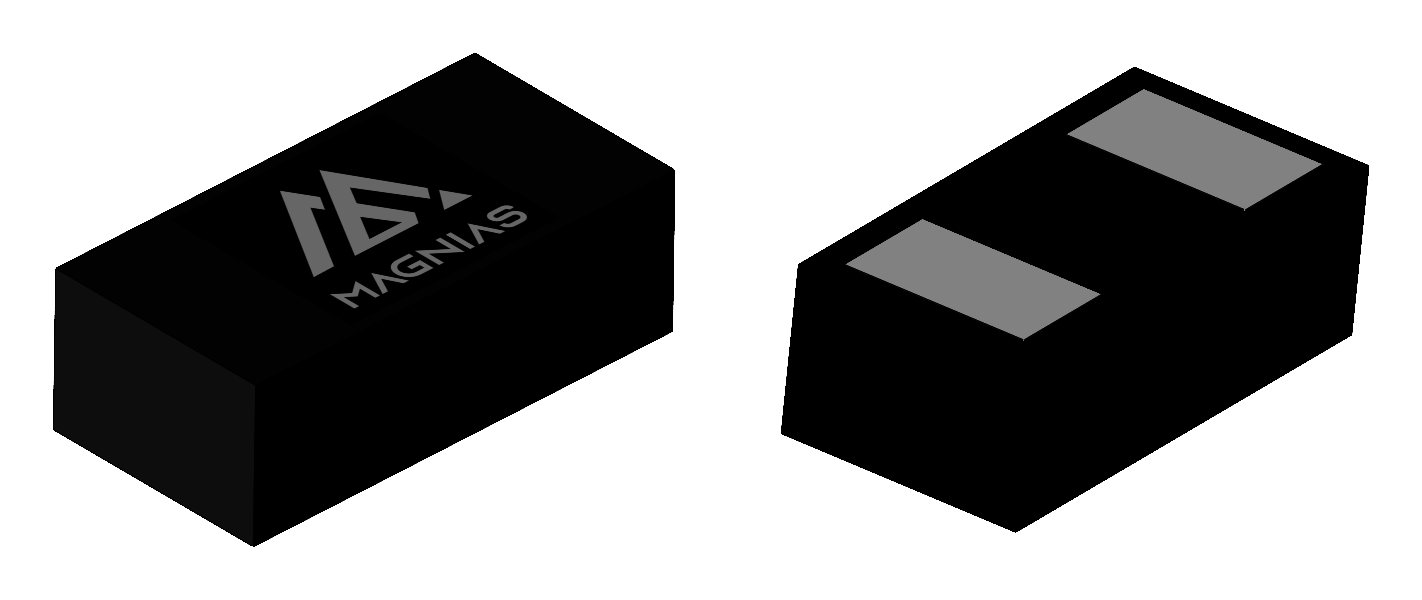

ESD protection diode in a CSP0402-2L package. Designed to protect one signal line from damage caused by electrostatic discharge (ESD) strikes and other transients.
CSP0402-2L RoHS Halogen Free AVAILABLE
Package — CSP0402-2L
Features
- Low Junction capacitance: 4.5pF(typ.)
- Reverse working voltage: 5.5V
- IEC 61000-4-2 (Air): ±16kV
- IEC 61000-4-2 (Contact): ±16kV
- IEC 61000-4-5 (Surge): 5.5A (8/20us)
Applications
- Power Line Protection VBUS
- Smartphones, mobile phone and accessories
- Tablet and notebooks
- Portable multimedia devices and accessories
Key specifications
Product Name
PT0595L-C1
Package
CSP0402-2L
VRWM MAX.
(V)
5.5
VBR MIN.
(V)
9
CJ TYP.
(pF)
4.5
CJ MAX.
(pF)
5.5
Channel
1
ESD C
(kV)
±16
ESD A
(kV)
±16
IPP 8/20
(A)
5.5
PPP
(W)
50
VCIPP@1A
(V)
-
VCIPP@MAX
(V)
-
VCTLP@1A
(V)
6.1
VCTLP@16A
(V)
10
