PT0508T-S4
ESD protection array
ESD protection array in a SOT-143 package. Designed to protect 2 signal lines from damage caused by electrostatic discharge (ESD) strikes and other transients.
SOT-143 RoHS Halogen Free AVAILABLE

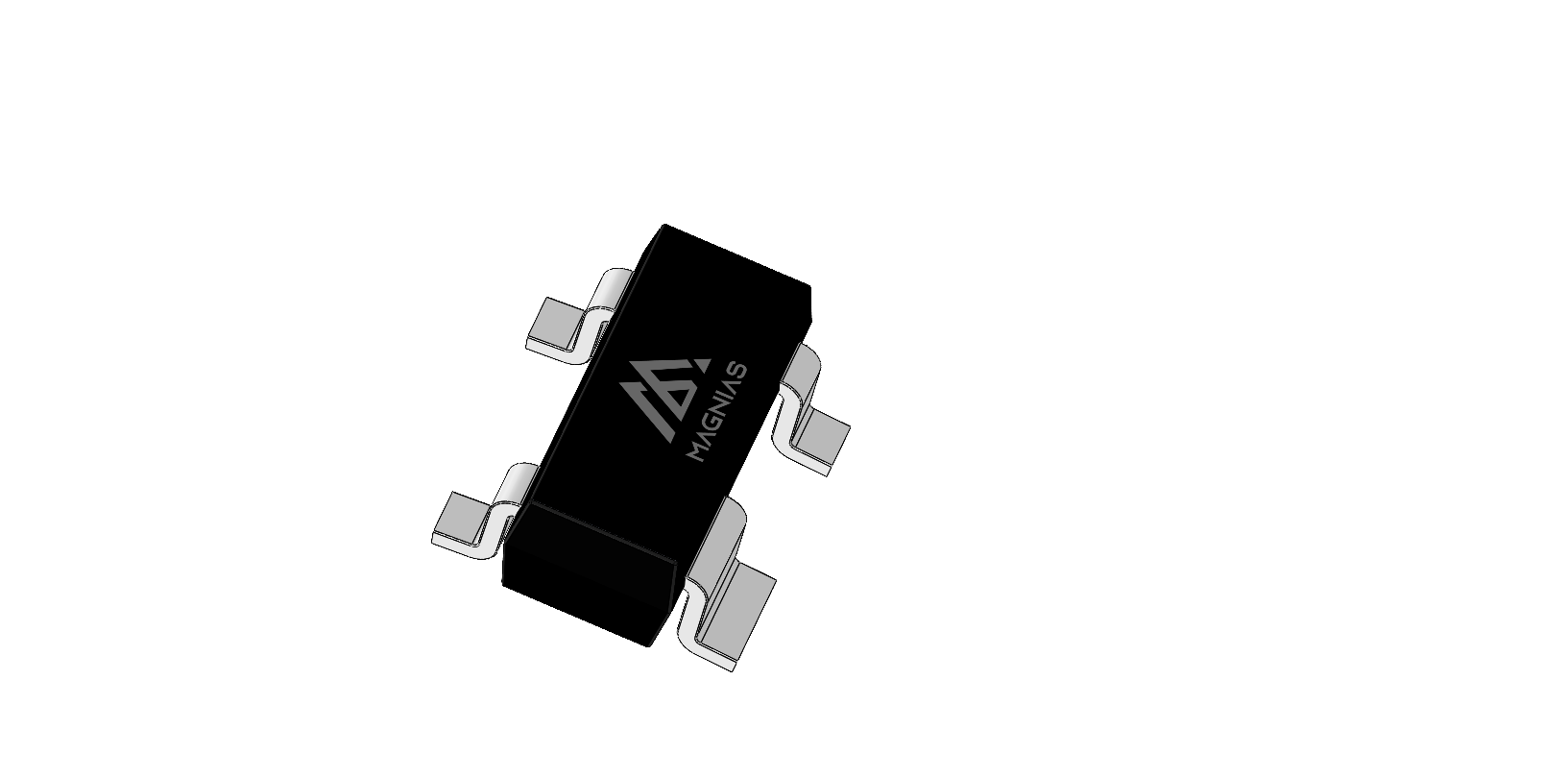

Package — SOT-143
Features
- Capacitance: 0.8pF(typ.)
- Reverse standoff voltage: 5.0V
- IEC 61000-4-2 (Air): ±15kV
- IEC 61000-4-2 (Contact): ±15kV
- IEC 61000-4-5 (Surge): 4.5A, I/O to GND; 17A,
- VCC to GND
- Molding compound flammability rating: UL 94V-0
Applications
- USB3.0 power and data line protection
- Portable and notebook computers
- LAN/WAN interface
Key specifications
Product Name
PT0508T-S4
Package
SOT-143
VRWM MAX.
(V)
5
VBR MIN.
(V)
6
CJ TYP.
(pF)
0.8
CJ MAX.
(pF)
1
Channel
2
ESD C
(kV)
±15
ESD A
(kV)
±15
IPP 8/20
(A)
4.5
PPP
(W)
60
VCIPP@1A
(V)
9.5
VCIPP@MAX
(V)
13
VCTLP@1A
(V)
-
VCTLP@16A
(V)
-
