PT0507B-F10
ESD protection array
ESD protection array in a DFN2510-10L package. Designed to protect 4 signal lines from damage caused by electrostatic discharge (ESD) strikes and other transients.
DFN2510-10L RoHS Halogen Free AVAILABLE

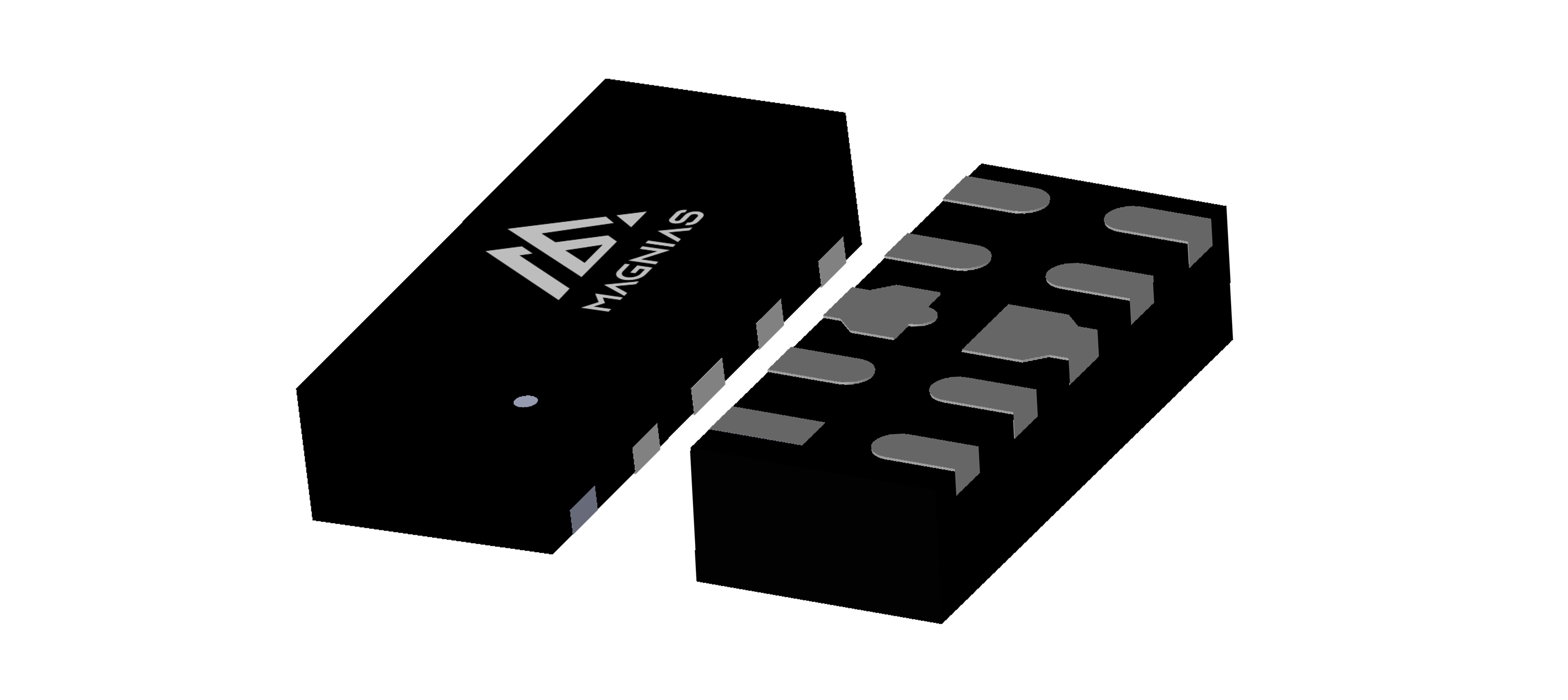

Package — DFN2510-10L
Features
- Ultra-low capacitance: 0.70pF(typ.)
- Reverse working voltage: 5V
- IEC 61000-4-2 (Air): ±30kV
- IEC 61000-4-2 (Contact): ±30kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
Applications
- Desktops, Servers and Notebooks
- USB2.0/3.0
- Display Ports
- HDMI 1.3/1.4/2.0
- Digital Visual Interfaces (DVI)
- IEC 61000-4-5 (Surge): 5A (8/20us)
Key specifications
Product Name
PT0507B-F10
Package
DFN2510-10L
VRWM MAX.
(V)
5
VBR MIN.
(V)
-
CJ TYP.
(pF)
0.7
CJ MAX.
(pF)
-
Channel
4
ESD C
(kV)
±30
ESD A
(kV)
±30
IPP 8/20
(A)
5
PPP
(W)
-
VCIPP@1A
(V)
-
VCIPP@MAX
(V)
-
VCTLP@1A
(V)
-
VCTLP@16A
(V)
-
