PT0502S-F55
ESD protection array
ESD protection array in a DFN5515-18L package. Designed to protect 8 signal lines from damage caused by electrostatic discharge (ESD) strikes and other transients.
DFN5515-18L RoHS Halogen Free AVAILABLE

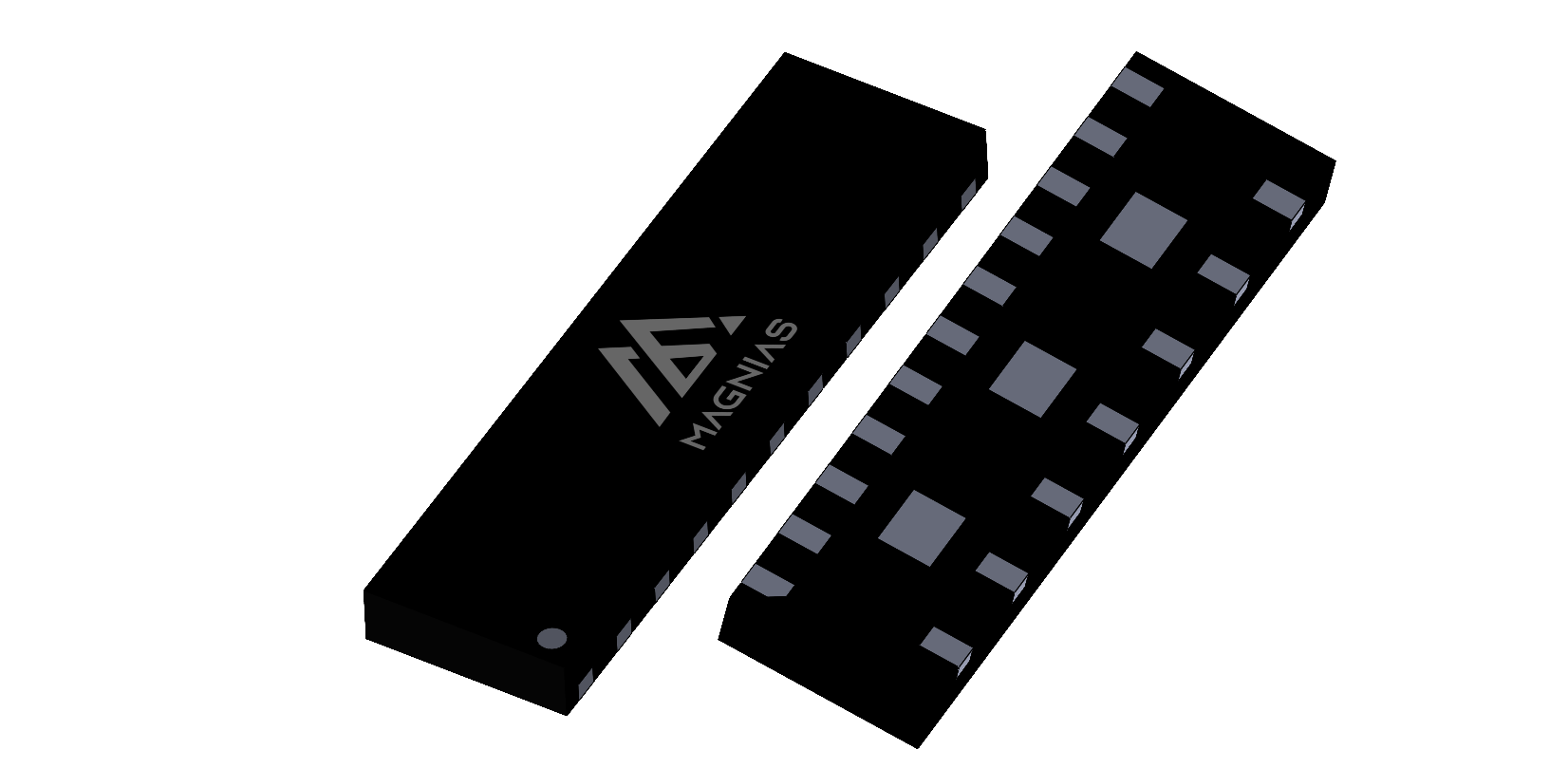

Package — DFN5515-18L
Features
- Ultra-Low capacitance (I/O to GND): 0.25pF
- Reverse working voltage: ±5.0V
- ESD Protection for High-Speed Data Lines
- IEC 61000-4-2 (Contact): ±12kV
- IEC 61000-4-2 (Air): ±12kV
- IEC 61000-4-5 (Surge): 2.5A (8/20μs)
Applications
- V−by−One HS
- LVDS
- Display Port
- HDMI
- USB3.0
- Thunderbolt (light Peak)
Key specifications
Product Name
PT0502S-F55
Package
DFN5515-18L
VRWM MAX.
(V)
5
VBR MIN.
(V)
5.5
CJ TYP.
(pF)
0.25
CJ MAX.
(pF)
0.3
Channel
8
ESD C
(kV)
±12
ESD A
(kV)
±12
IPP 8/20
(A)
2.5
PPP
(W)
30
VCIPP@1A
(V)
8.5
VCIPP@MAX
(V)
9.5
VCTLP@1A
(V)
6
VCTLP@16A
(V)
18.2
