Buck Converter
MI6028P Series
Buck Converter
Buck Converter in a WQFN2.5x2.5-16L package.
WQFN2.5x2.5-16L RoHS Halogen Free AVAILABLE

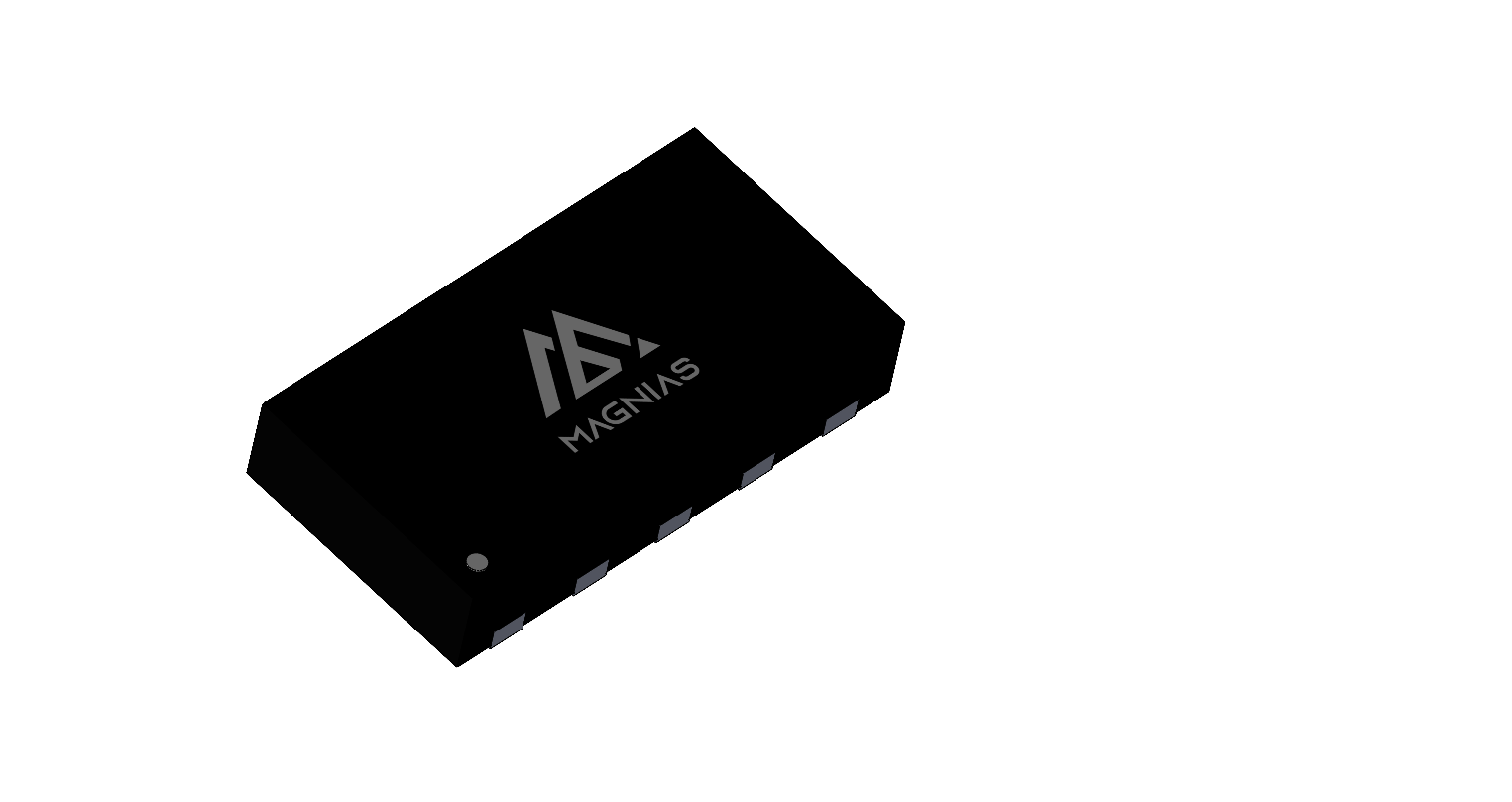

Package — WQFN2.5x2.5-16L
Features
- Continual Output Current: 8A
- Integrated 10mΩ at VCC=5V N-Channel MOSFET for Low Side
- Integrated 20mΩ at VCC=5V N-Channel MOSFET for High Side
- Integrated Bypass Switch: 1.5Ω
- Internal Soft start Limits the Inrush Current
- 1% Internal Reference Voltage
- Maximum Output Voltage Set-Point: 5.5V
- ower Good Indicator
- Output Discharge Function
- rogrammable Valley Current Limit Threshold by ILMT pin
- Latch-off Mode OVP & UVP Protections
- Latch-off Mode Over Temperature Protection
- Input UVLO
Applications
- Notebook Computers, PC Computers, and Servers
- Ultrabook, Tablet Computers
- Single-Board Computer, Industrial PC Distributed Power Systems
Key specifications
Package
WQFN2.5x2.5-16L
Input Voltage Range
4.5V – 24V
Output Voltage Range
ADJ/3.3V/5.5V
Max Output Current
8A
Switching Frequency
500kHz / 600kHz
Efficiency
High
Control Scheme
PWM + PFM/FCCM
Soft Start
0.6ms ~ 1.2ms
Protections
UVLO, OCP (valley current limit), OVP, OTP, SCP, UVP, Themal Shutdown
